BP-Hexad-Die
Name：BP Hexad Die
Grade：LC30 LC40 LC50 LC60 LC70 LC80
Usage：For making hexagonal nuts
Combination die blanks for making hexagonal nuts

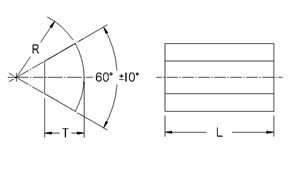

| Type | Dimension（㎜） | Type | Dimension（㎜） | ||||
| R | T | L | R | T | L | ||
| BP1100621 | 11.0 | 6 | 21 | BP2501432 | 25.0 | 14.0 | 32 |
| BP1100721 | 11.0 | 7 | 21 | BP2601223 | 26.0 | 12.5 | 23 |
| BP1300621 | 13.0 | 6.5 | 21 | BP2601237 | 26.0 | 12.0 | 37 |
| BP1500820 | 15.0 | 8 | 20 | BP2751436 | 27.5 | 14.0 | 36 |
| BP1601220 | 16.0 | 12 | 20 | BP2801132 | 28.0 | 11.0 | 23 |
| BP1800921 | 18.0 | 9 | 21 | BP2801323 | 28.0 | 13.0 | 23 |
| BP1801021 | 18.0 | 10 | 21 | BP2801143 | 28.0 | 11.0 | 43 |
| BP1800929 | 18.0 | 9 | 29 | BP2801343 | 28.0 | 13.0 | 43 |
| BP1801029 | 18.0 | 10 | 29 | BP2901835 | 29.0 | 18.0 | 35 |
| BP2001028 | 20.0 | 10.5 | 28 | BP3001442 | 30.0 | 14.0 | 42 |
| BP2001128 | 20.0 | 11.5 | 28 | BP3001542 | 30.0 | 15.0 | 42 |
| BP2251328 | 22.5 | 13.0 | 28 | BP3101347 | 31.0 | 13.0 | 47 |
| BP2251428 | 22.5 | 14.0 | 28 | BP3251446 | 32.5 | 14.5 | 46 |
| BP2301121 | 23.0 | 11.0 | 21 | BP3301226 | 33.0 | 12.5 | 26 |
| BP2301221 | 23.0 | 12.5 | 21 | BP3301251 | 33.0 | 12.5 | 51 |
| BP2301133 | 23.0 | 11.0 | 33 | BP3601326 | 36.0 | 13.0 | 26 |
| BP2301233 | 23.0 | 12.5 | 33 | BP3601358 | 36.0 | 13.0 | 56 |
| BP2501332 | 25.0 | 13.0 | 32 | ? | ? | ? | ? |
