Finished Cemented Carbide Roll Rings

1. Technical specifications of finished cemented carbide roll rings

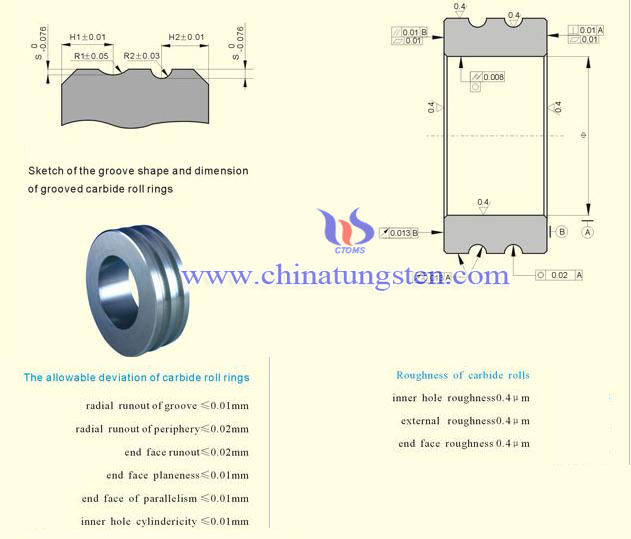

The groove shape and allowable dexiation of dimensions for grooved cemented carbide rolls.
finished cemented carbide roll ring

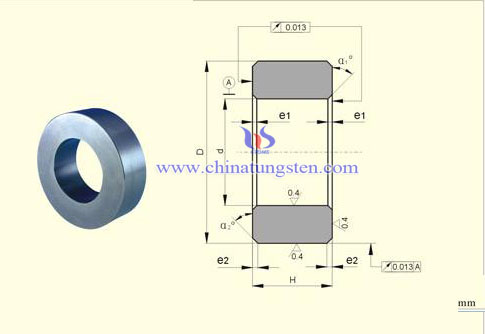

2.Dimensions and precision of the finished cemented carbide roll rings

finished cemented carbide roll ring
External diameter(D) Inner diameter(d) Height(H)
145-380 87-260 62-130

Note: We can supply them according to the drawing provided by customers.

Outer Diameter(D) Inner Diameter(+) Height(-) Inner Chamfer e1xa1 Outer chamfer e2xa2
158.75 +0.022+0.005 +0.037-0.037 1.5× 450 5× 300
158.75 +0.022+0.005 +0.037-0.037 1.5×450 1×60
170.66 +0.022+0.005 +0.037-0.037 1.5×450 1×450
178.30 +0.022+0.005 +0.03-0.03 1.5×450 1.5×450
186.00 +0.022+0.005 +0.03-0.03 1.5× 450 3× 450
206.65 +0.022+0.005 +0.037-0.037 1.5× 450 1× 60
210.00 +0.022+0.005 +0.037-0.037 2× 450 0.5× 450
216.38 +0.022+0.005 +0.037-0.037 2× 450 3.5× 100
285.00 +0.022+0.005 +0.037-0.037 1× 450 1× 450
285.00 +0.022+0.005 +0.03-0.03 1× 450 1× 450
365.00 +0.022+0.005 +0.03-0.03 1× 450 1× 450

Chinatungsten Online can provide various sizes and grades of cemented carbide products,deep processing and mold design and production , non-standard products can also be customized according to customer requirements. Welcome to consult and purchase sales@chinatungsten.com, sales@xiamentungsten.com .
