Carboneto de Tungstênio Buttons
Produtos de metal duro para o meu, broca Petróleo bits campo/T2527-1989.
QTipo(bot?es)
| Tipo | METRIC DIMENS?O | ||||
| D | H | h | R | e | |
| Q0810 | 8 | 10 | 7.1 | 4.2 | 1.5 |
| Q0812 | 8 | 12 | 9.1 | 4.2 | |
| Q1010 | 10 | 10 | 6.2 | 5.2 | |
| Q1012 | 10 | 12 | 8.2 | 5.2 | |
| Q1014 | 10 | 14 | 10.2 | 5.2 | |
| Q1214 | 12 | 14 | 9.4 | 6.2 | |
| Q1216 | 12 | 16 | 11.4 | 6.2 | |
| Q1218 | 12 | 18 | 13.4 | 6.2 | |
| Q1313 | 13 | 13.5 | 8.4 | 6.7 | |
| Q1315 | 13 | 13.5 | 10.4 | 6.7 | |
| Q1416 | 14 | 16 | 10.5 | 7.2 | |
| Q1417 | 14 | 17 | 11.1 | 7.6 | |
| Q1420 | 14 | 20 | 14.5 | 7.2 | |
| Q1422 | 14 | 22 | 16.5 | 7.2 | |
| Q1517 | 15 | 17 | 11.1 | 7.6 | 2.0 |
| Q1618 | 16 | 18 | 11.6 | 8.2 | |
| Q1623 | 16 | 23 | 16.6 | 8.2 | |
| Q1625 | 16 | 25 | 18.6 | 8.2 | |
| Q1825 | 18 | 25 | 17.7 | 9.2 | |
| Q1827 | 18 | 27 | 19.7 | 9.2 | |
| Q2030 | 20 | 30 | 20 | 10.2 | |
| Q2540 | 25 | 40 | 29.8 | 12.7 | |

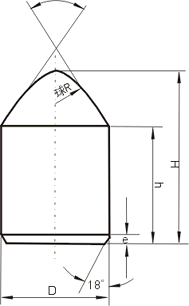

ZTipo(dente conispherical)
| Tipo | METRIC DIMENS?O | |||||
| D | H | h | R | e | α(O) | |
| Z0810 | 8 | 10 | 6.5 | 3 | 1.5 | 35 |
| Z0812 | 8 | 12 | 8.5 | 3 | ||
| Z1011 | 10 | 11 | 7.1 | 4.4 | ||
| Z1013 | 10 | 13 | 9.1 | 4.4 | ||
| Z1015 | 10 | 15 | 9.9 | 4 | ||
| Z1215 | 12 | 15 | 10.2 | 5.1 | ||
| Z1218 | 12 | 18 | 13 | 4.8 | ||
| Z1416 | 14 | 16 | 9.5 | 4.7 | ||
| Z1418 | 14 | 18 | 12.5 | 6.0 | ||
| Z1420 | 14 | 20 | 13.7 | 5.0 | ||
| Z1422 | 14 | 22 | 15.7 | 6.0 | ||
| Z1625 | 16 | 25 | 17.3 | 5.0 | 2.0 | |
XTipo? dente da cunha
| Tipo | METRIC DIMENS?O | |||||||
| D | H | h | R | r | e | α(O) | β(O) | |
| X0810 | 8 | 10 | 6.5 | 2.0 | 1.8 | 1.5 | 45 | 22.5 |
| X1011 | 10 | 11 | 7 | 2.5 | 2.0 | 45 | ||
| X1013 | 10 | 13 | 9 | 2.5 | 2.0 | 45 | ||
| X1115 | 11 | 15 | 8 | 2.75 | 2.5 | 22.5 | ||
| X1215 | 12 | 15 | 9 | 3.0 | 3.0 | 45 | ||
| X1217 | 12 | 17 | 10.5 | 3.5 | 3.0 | 35 | 20 | |
| X1418 | 14 | 18 | 10 | 3.5 | 3.0 | 45 | 22.5 | |
| X1420 | 14 | 20 | 11 | 2.7 | 3.0 | 35 | ||
| X1520 | 15 | 20 | 12 | 3.0 | 3.0 | 40 | ||
| X1621 | 16 | 21 | 11 | 2.6 | 3.0 | 2.0 | 35 | |
| X1623 | 16 | 23 | 12 | 3.0 | 3.5 | 30 | 18 | |
| X1721 | 17 | 21 | 13 | 4.0 | 3.5 | 40 | 22.5 | |
| X1724 | 17 | 24 | 13 | 3.5 | 3.5 | 30 | ||
| X1929 | 19 | 29 | 17 | 4.0 | 3.0 | 40 | 15 | |

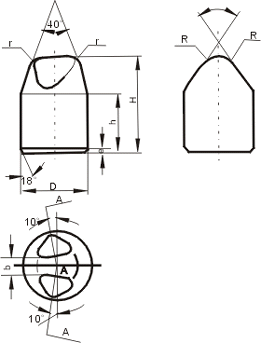

BTipo dente afiado cunha
| Tipo | METRIC DIMENS?O | |||||||
| D | H | h | R | r | e | α(O) | b | |
| B1417 | 14 | 17 | 12 | 3.0 | 2.5 | 1.5 | 90 | 3.0 |
| B1418 | 14 | 18 | 12 | 3.0 | 2.5 | 1.5 | 80 | 4.0 |
| B1419 | 14 | 19 | 12 | 3.0 | 2.5 | 1.5 | 75 | 4.0 |
| B1621 | 16 | 21 | 14 | 3.0 | 2.5 | 2.0 | 70 | 4.5 |
| B1924 | 19 | 24 | 15 | 3.5 | 3.0 | 2.0 | 70 | 4.5 |
| B2230 | 22 | 30 | 17 | 3.5 | 3.0 | 2.0 | 60 | 5.0 |
STipo(s Tipo metade do dente rodada)
| Tipo | METRIC DIMENS?O | ||||||||
| D | H | h | Ra | Rb | Rc | r | α(O) | e | |
| S1421 | 14 | 21 | 12 | 12 | 20 | 2.5 | 2.5 | 18 | 1.5 |
| S1623 | 16 | 23 | 12 | 15 | 23 | 2.5 | 2.5 | 18 | 1.5 |
| S1626 | 16 | 26 | 14 | 20 | 28 | 2.5 | 2.5 | 18 | 20 |
| S1724 | 17 | 24 | 13 | 16 | 25 | 3.0 | 3.0 | 20 | |
| S1930 | 19 | 30 | 17 | 16 | 25 | 3.0 | 3.0 | 15 | |
| S2240 | 22 | 40 | 21 | 20 | 30 | 3.0 | 3.0 | 13 | |
| S2545 | 25 | 45 | 23 | 30 | 35 | 3.5 | 3.5 | 13 | |
PTipo dente topo plano
| Tipo | METRIC DIMENS?O | ||
| D | H | h | |
| P0607 | 6 | 7 | 1.5 |
| P0707 | 7 | 7 | |
| P0807 | 8 | 7 | |
| P0908 | 9 | 8 | |
| P1008 | 10 | 8 | |
| P1109 | 11 | 9 | |
| P1210 | 12 | 10 | |
| P1412 | 14 | 12 | |
